ARX 23-2 & ARX 23-2C Light Tandem Rollers
Ammann ServiceLink
ARX 23-2 & ARX 23-2C Light Tandem Rollers
Ammann ServiceLink
  • ARX Light Tandem Rollers Brochure EN
  • Ammann Range Brochure EN
  • Data Sheet - ARX 23-2 StIII/T4i
  • Data Sheet - ARX 23-2 StV/T4f
  • Data Sheet - ARX 23.1-2 StV/T4f
  • Data Sheet - ARX 23.1-2C StV/T4f
  • Data Sheet - ARX 26-2 StV/T4f
  • Data Sheet - ARX 26-2 C StV/T4f
  • Data Sheet - ARX 26-2 C StIII/T4i
  • Data sheet - ARX 26.1-2 C StV/T4f
  • Data Sheet - ARX 26.1-2 StV/T4f
  • Data Sheet - ARX 26-2 StIII/T4i

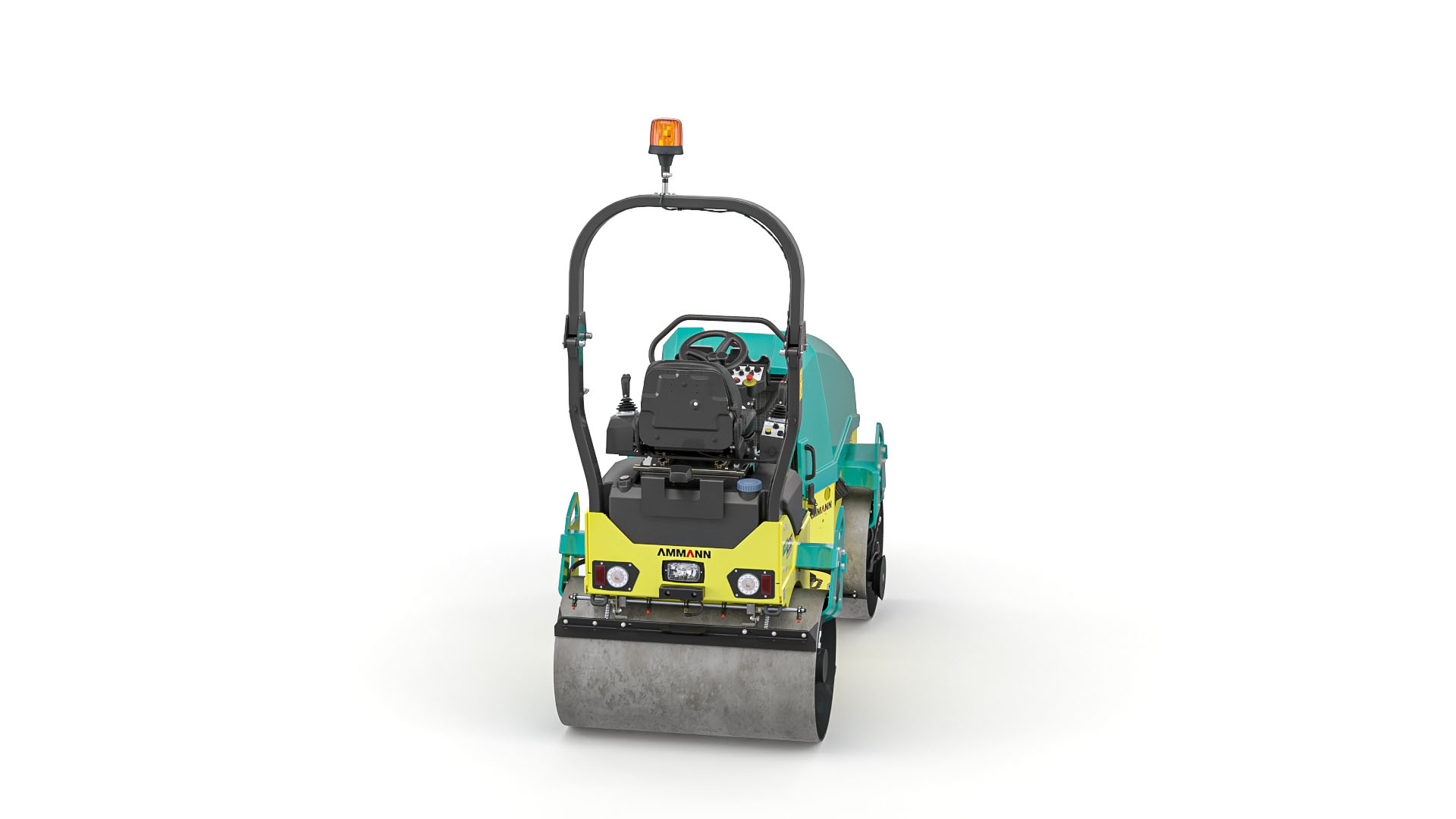

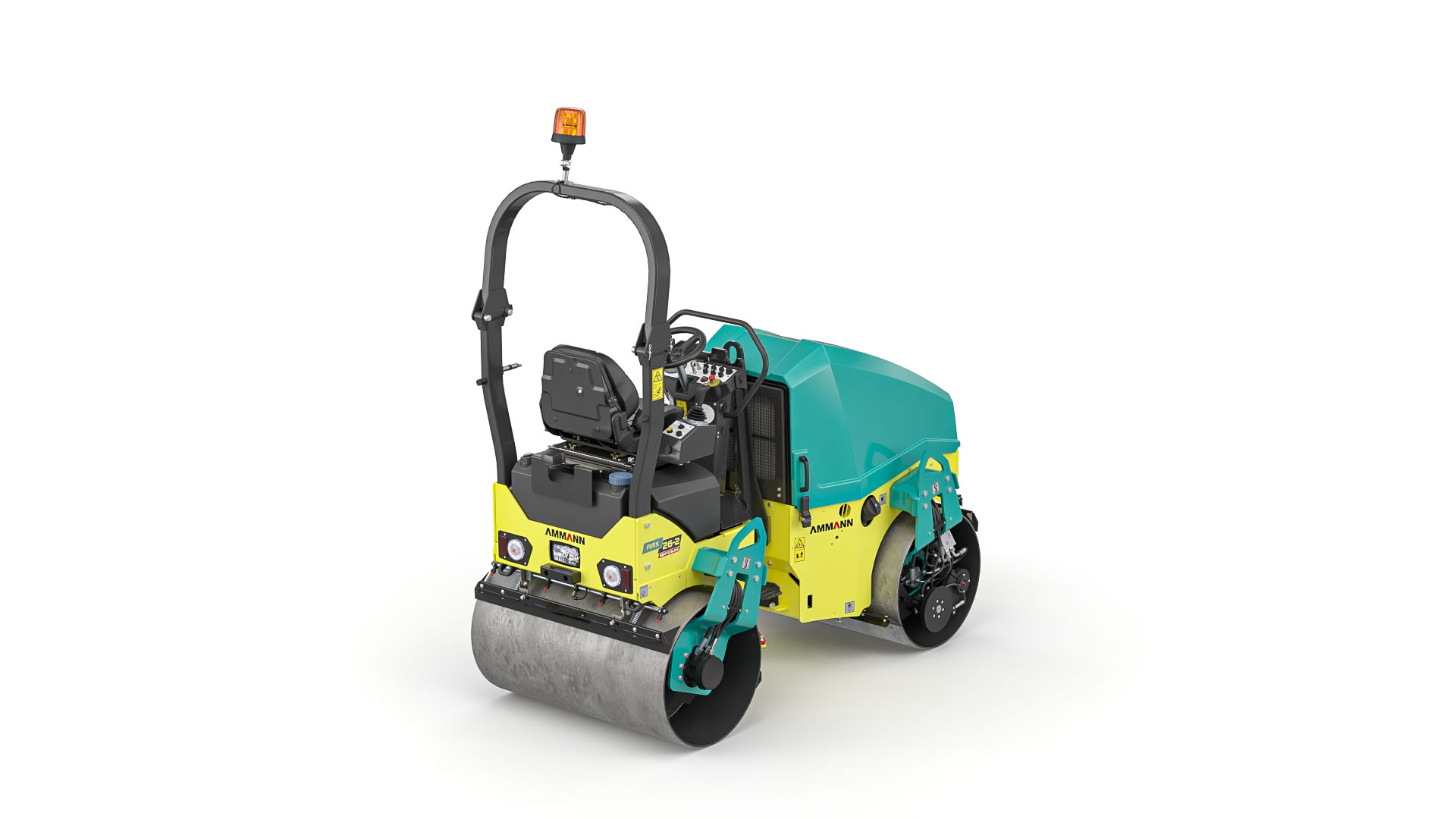

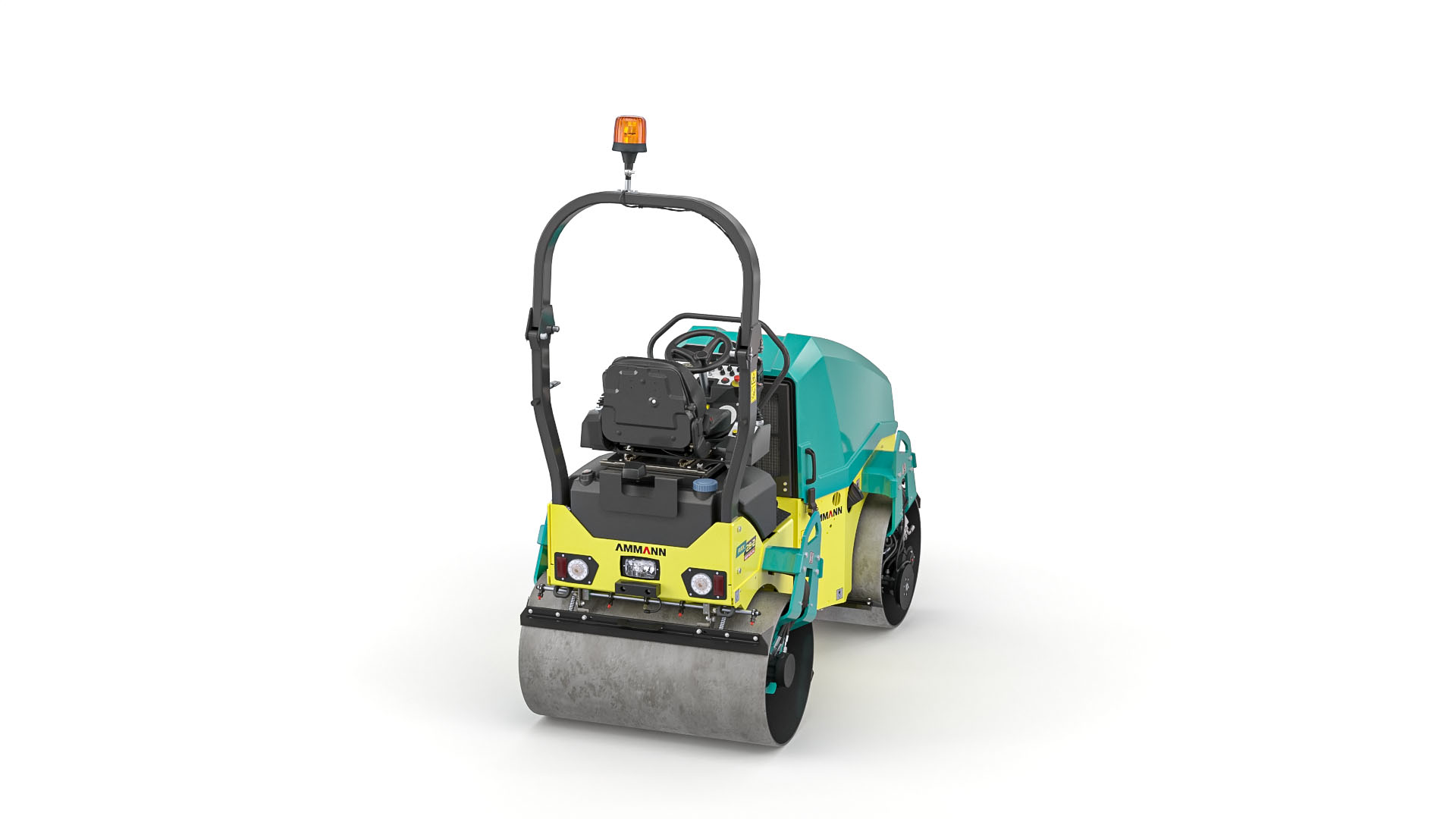

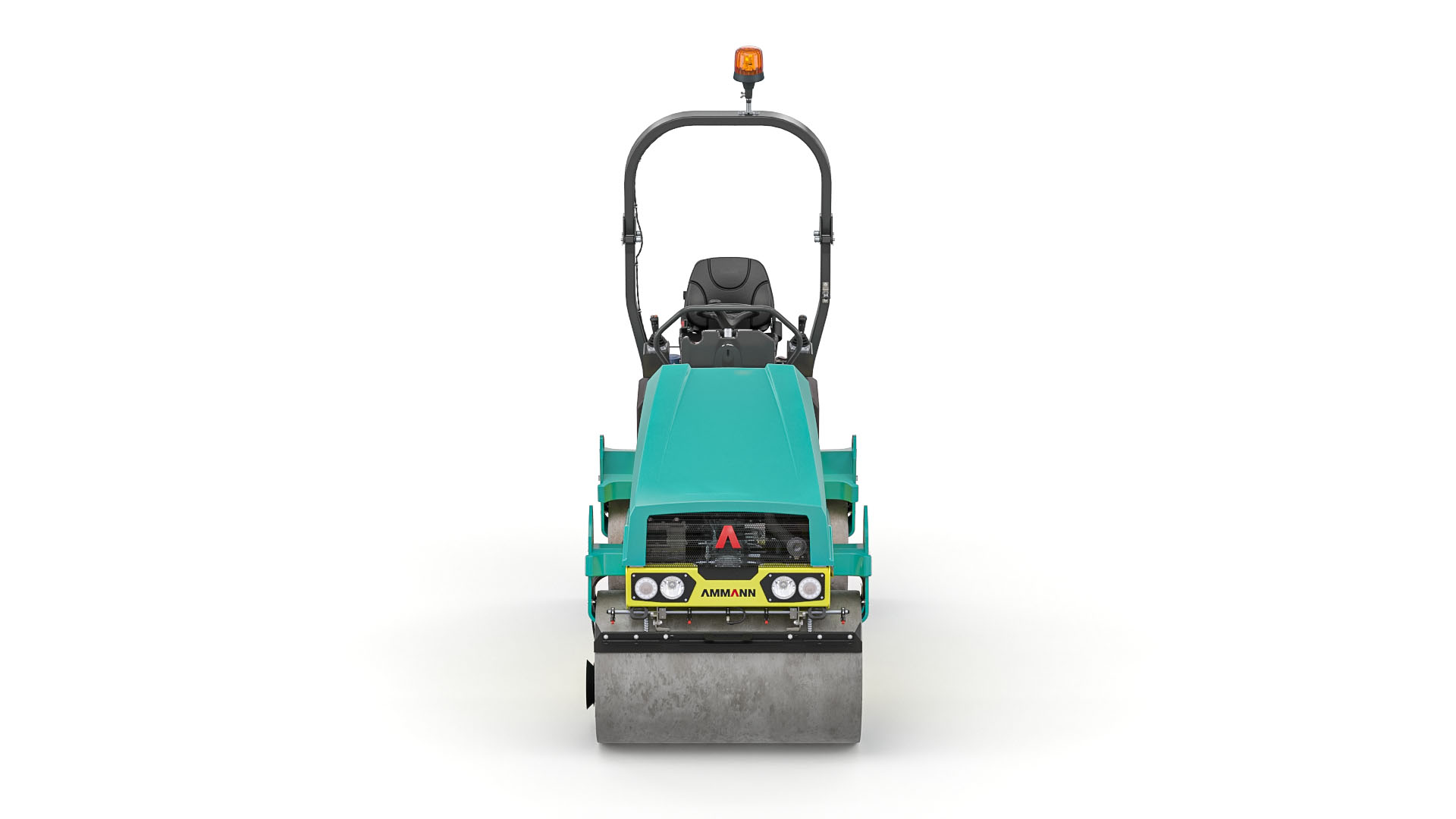

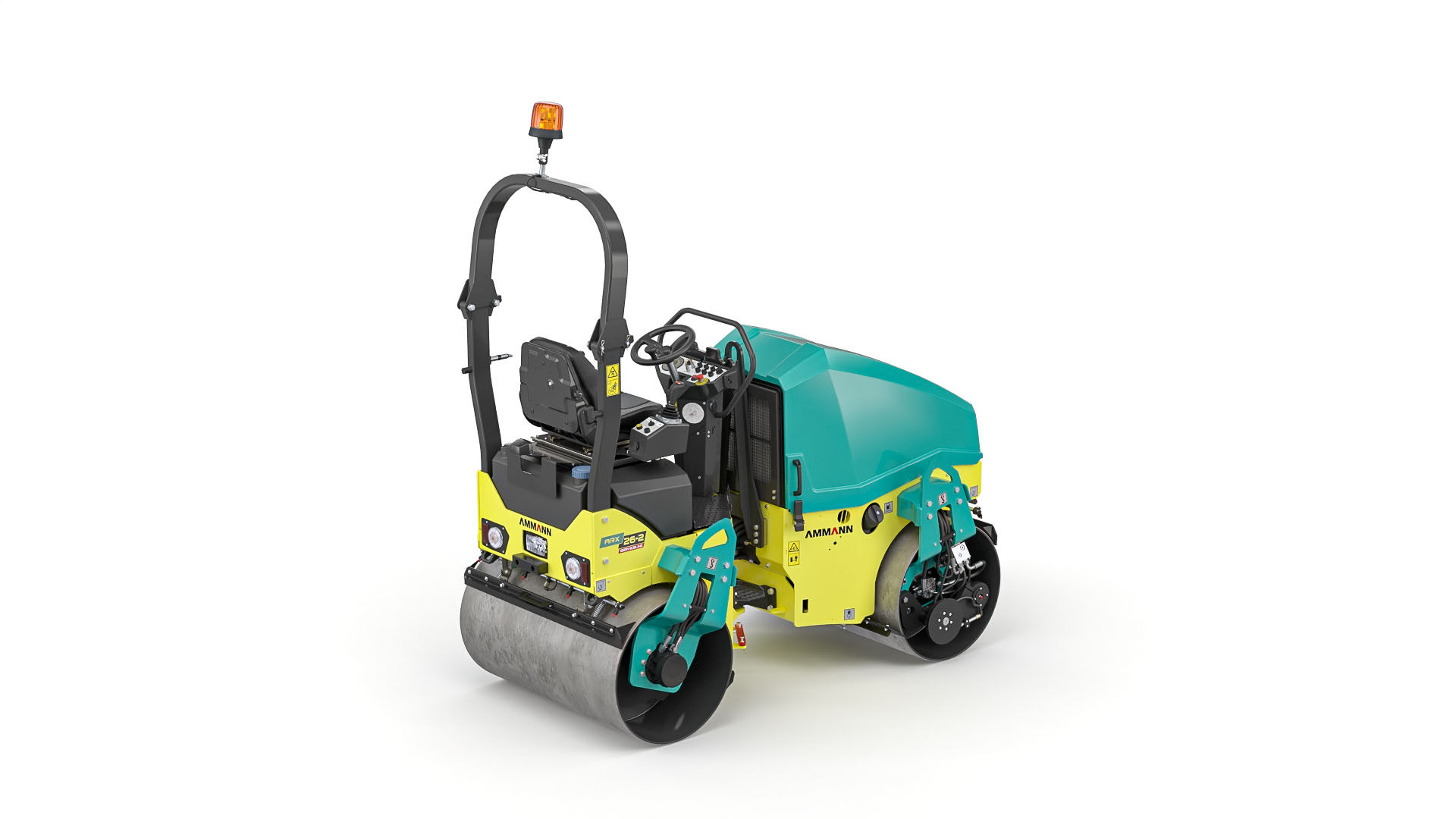

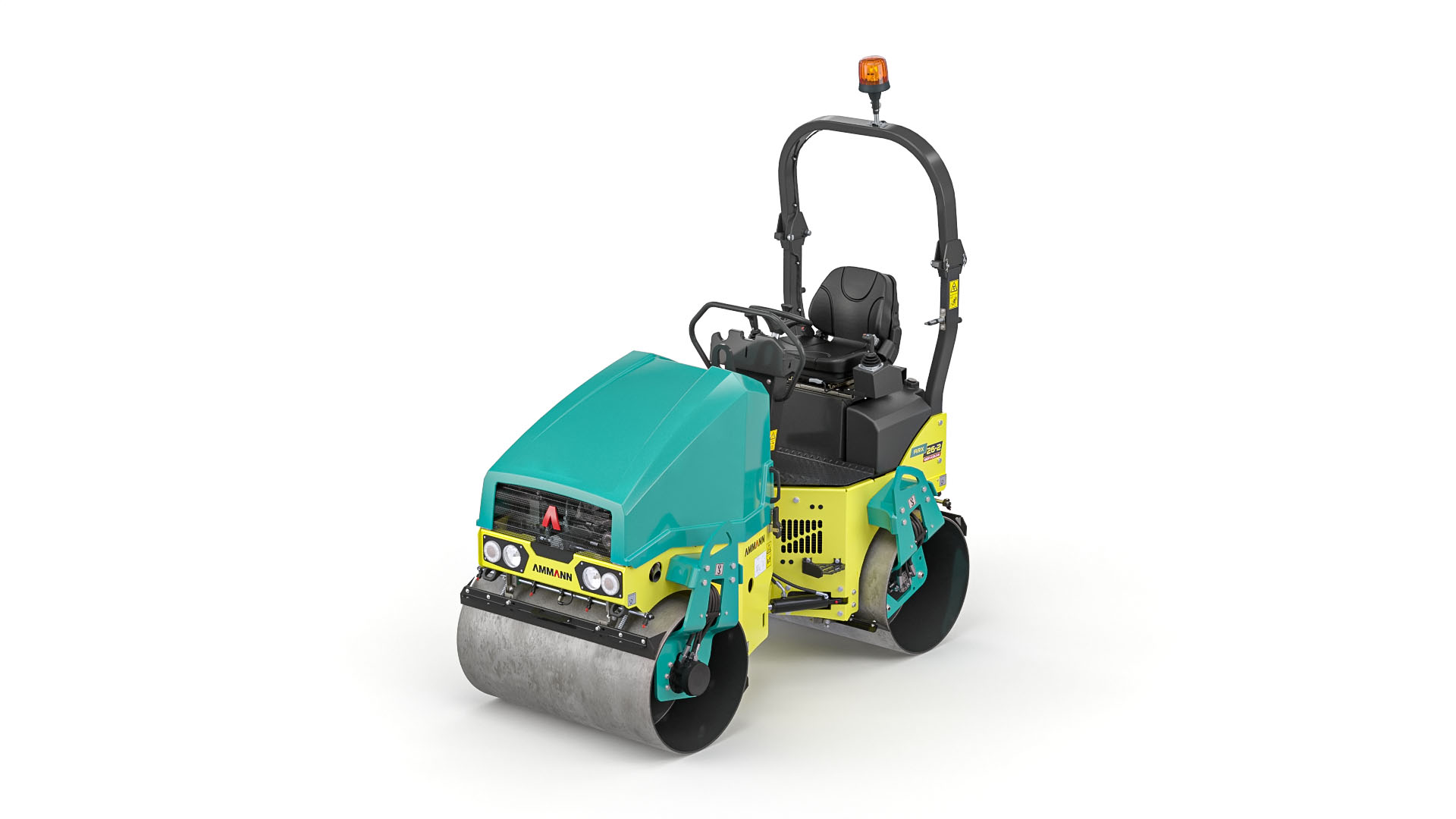

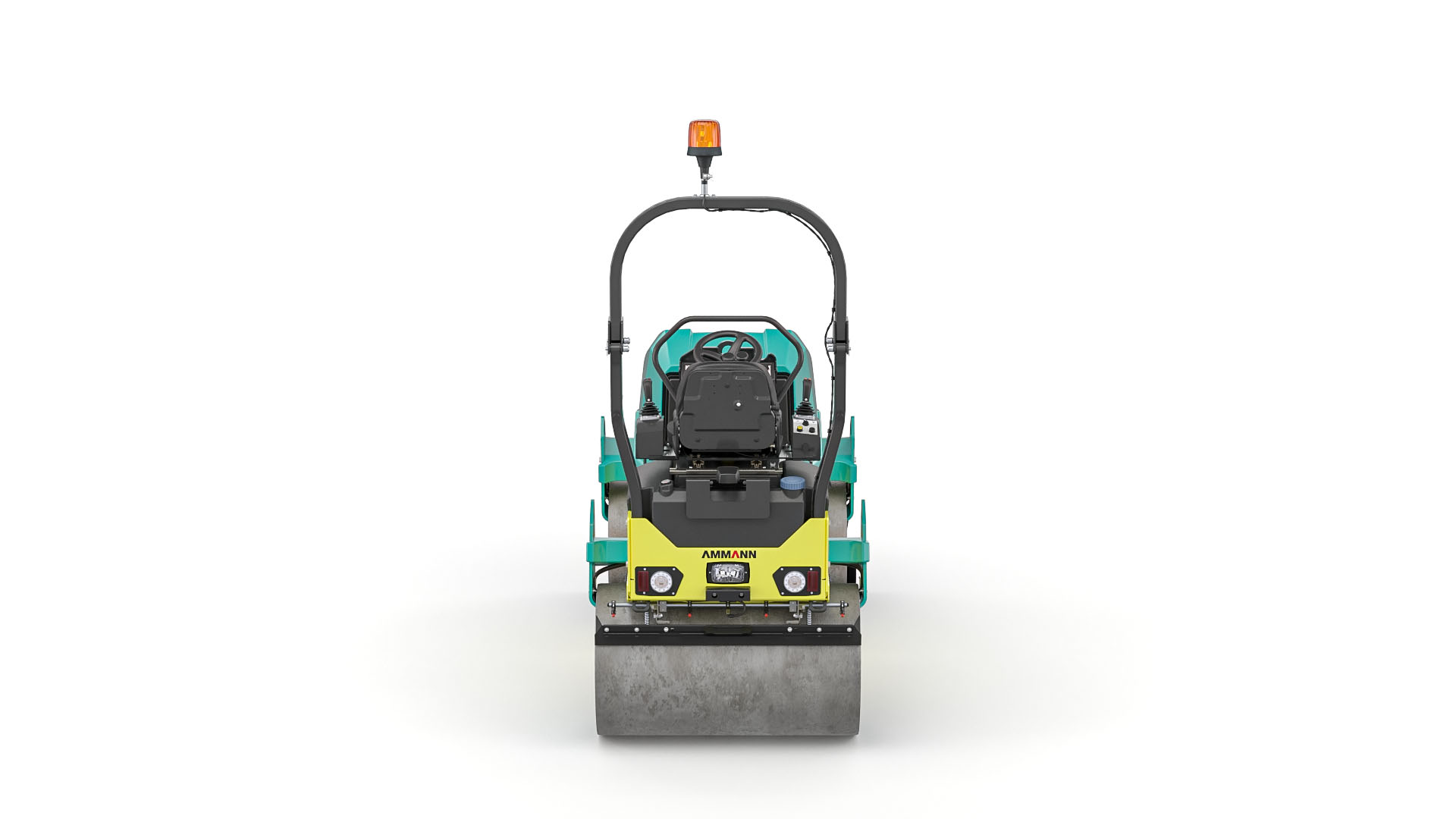

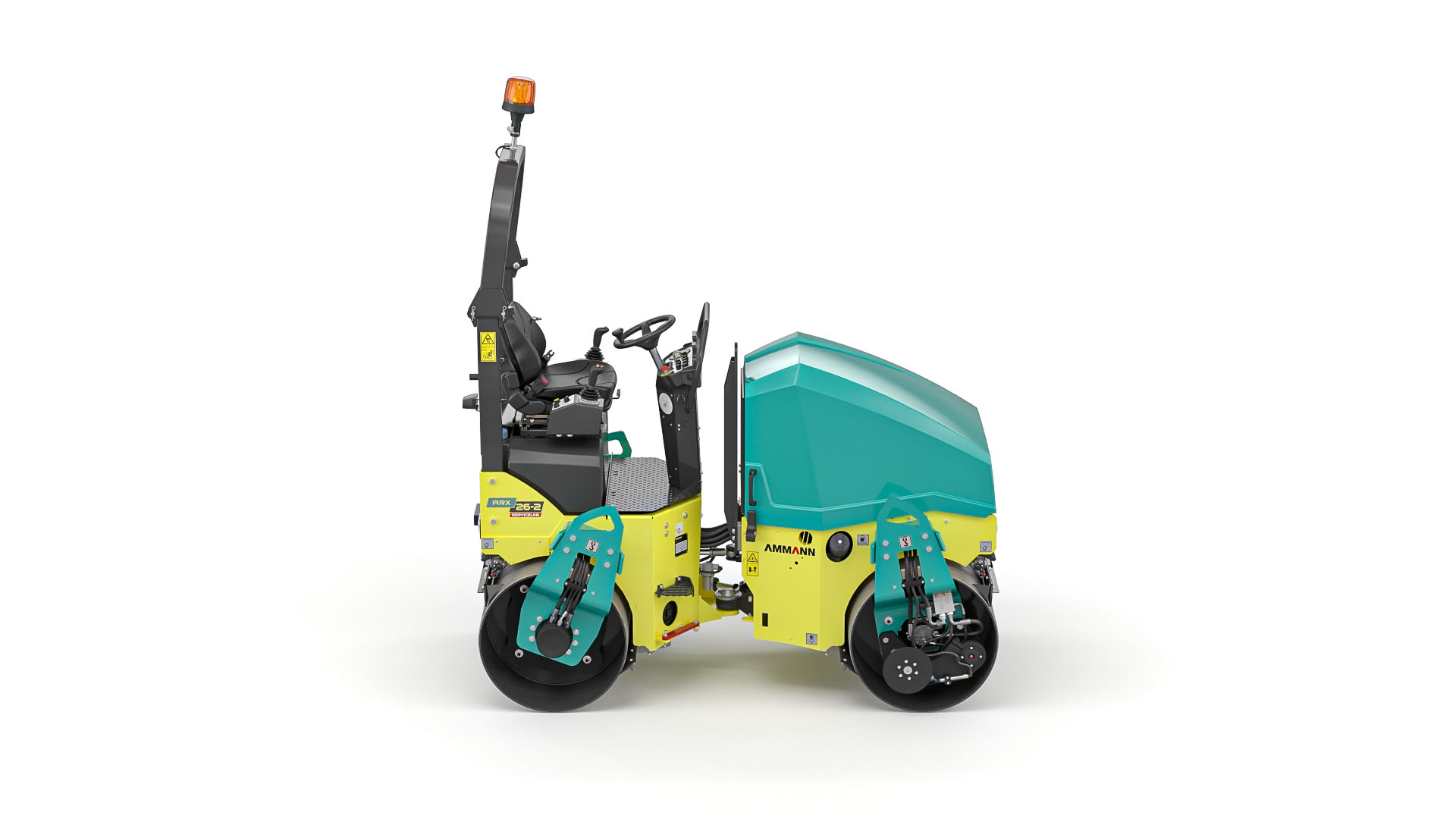

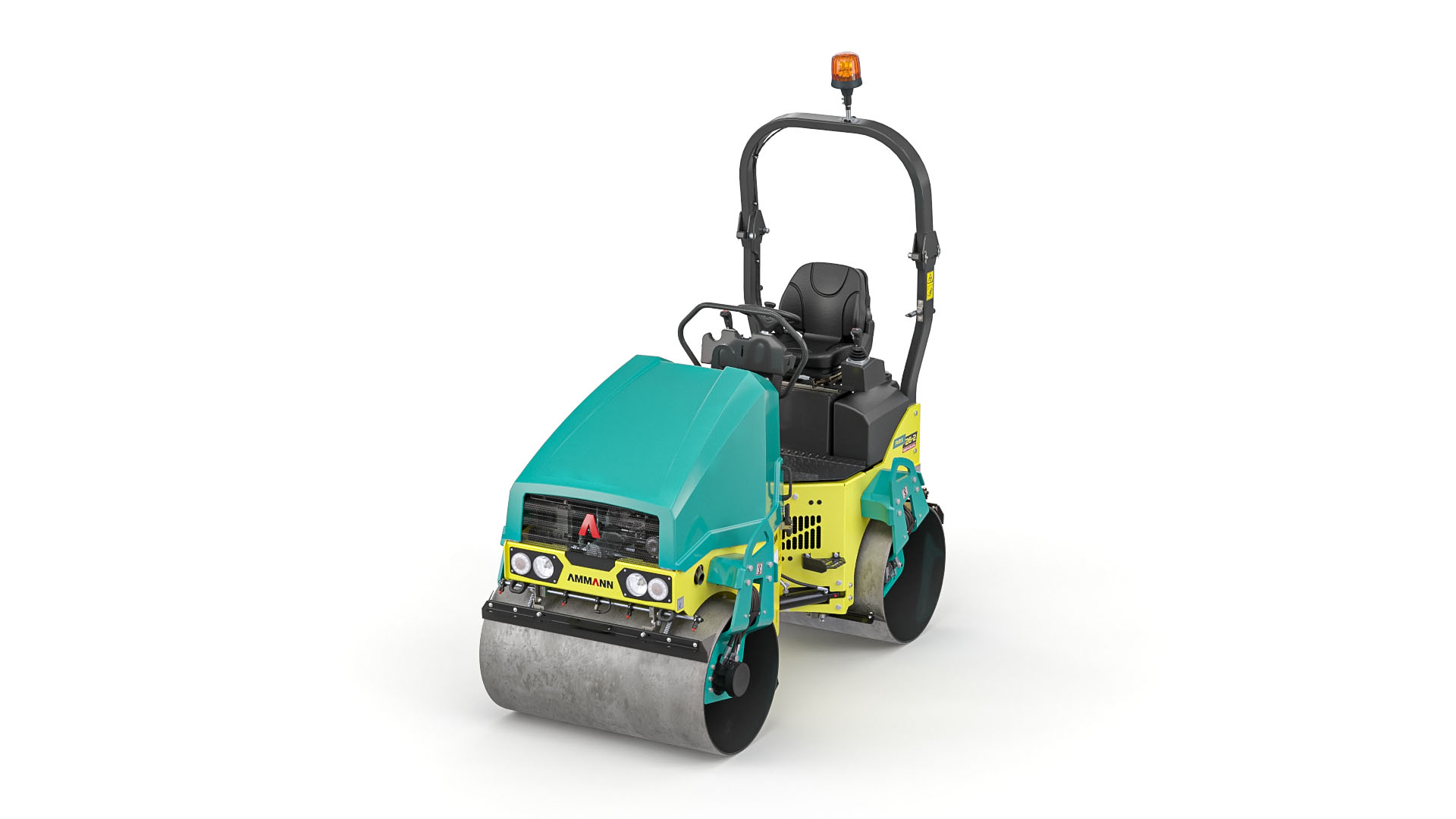

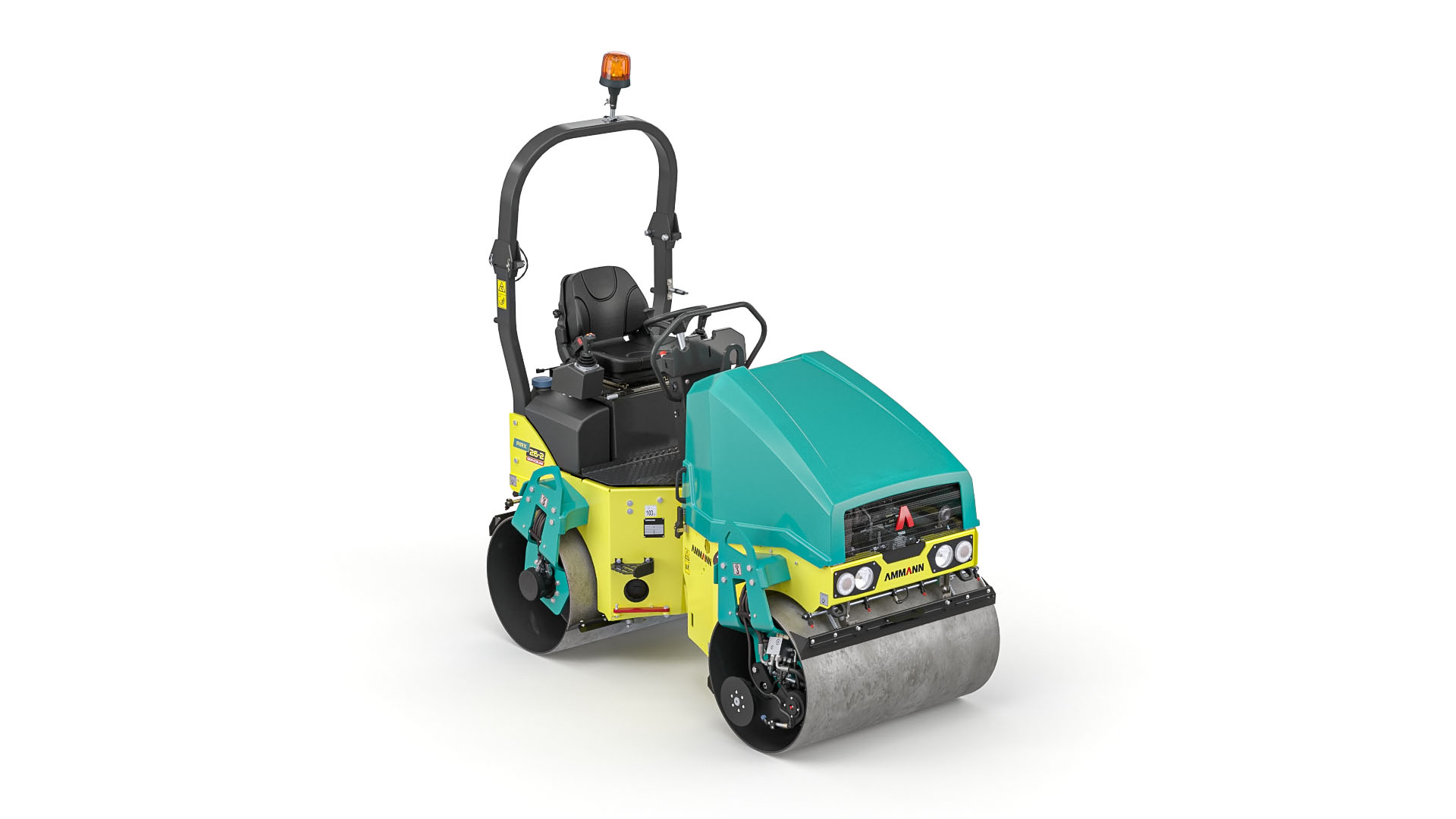

ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

These rollers utilise a new articulation joint that enables quick drum adjustment from in-line to off-set configurations, which is helpful when working close to obstructions.

When the machine is off-set, operators need watch only one drum, knowing the second will be a safe distance from the obstacle. The in-line drum setting is available when it´s time for productivity in open spaces. All these features make the machines great fits for rental companies.

Ready to learn more? Click on the product hotspots or the chat contact.

Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

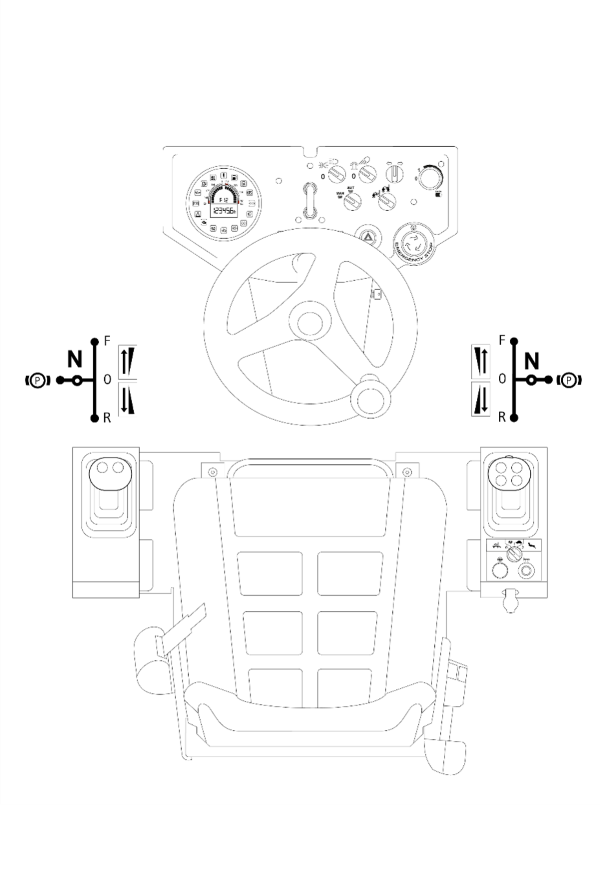

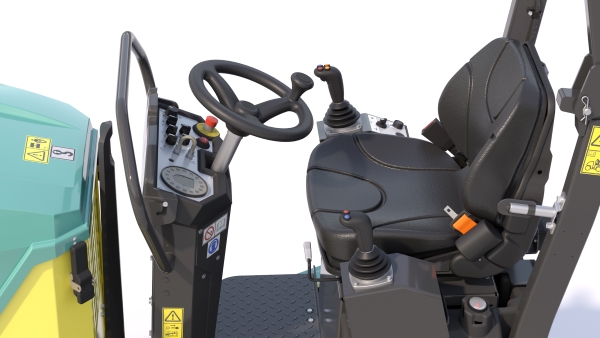

Operator station

A rubber-mounted platform limits the vibration that reaches the operator and enables comfort throughout the shift.

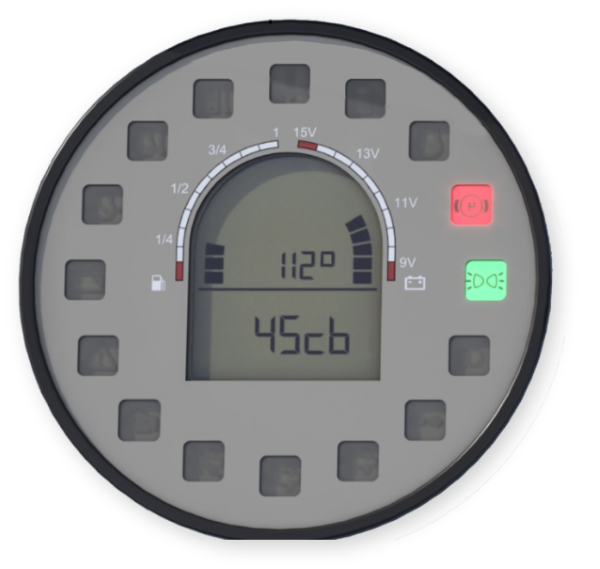

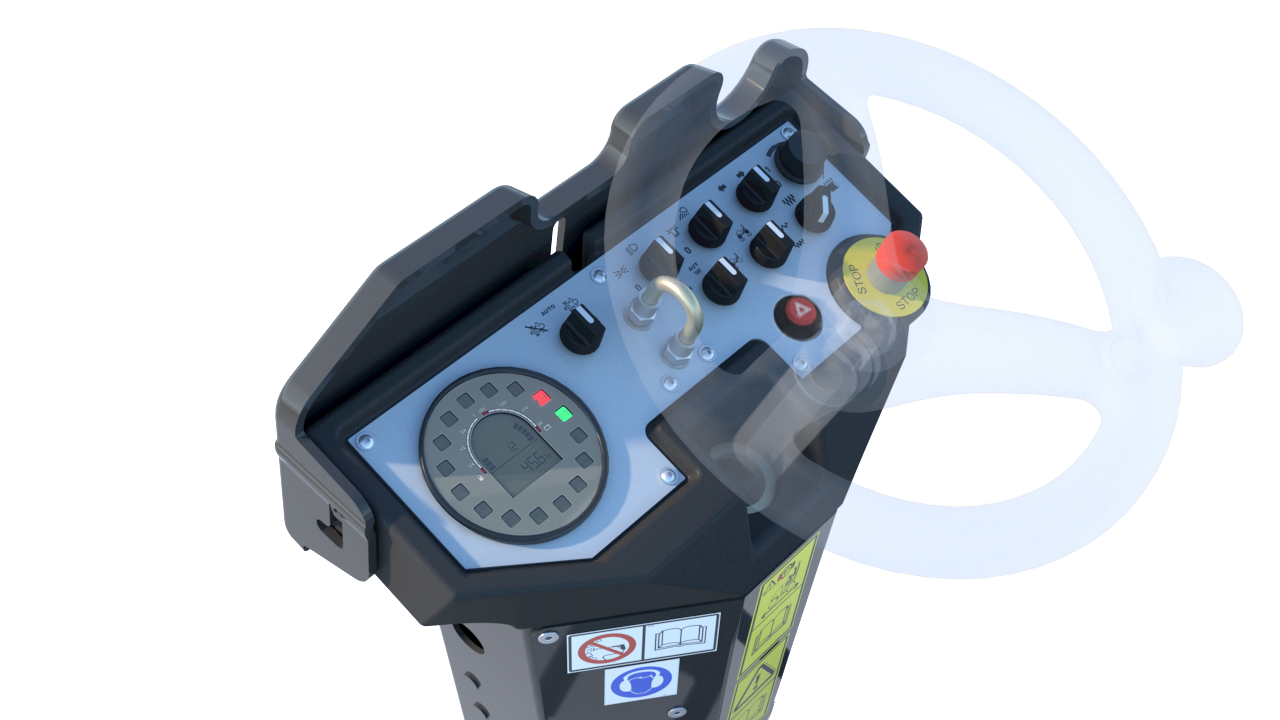

INTUITIVE DASHBOARD
  • Clear and logical layout
  • Reliable, intuitive switches
  • Integrated multifunctional display
ADVANCED FUNCTIONS
  • Panic stop function
  • Loading, working, transport modes
  • Integrated parking brake
  • Automatic engine speed setting (only Stage V / Tier 4 models)
Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

Vibratory system

Great combination of high-performance output and maintenance-free vibratory system make the machine more productive and cost effective.

Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

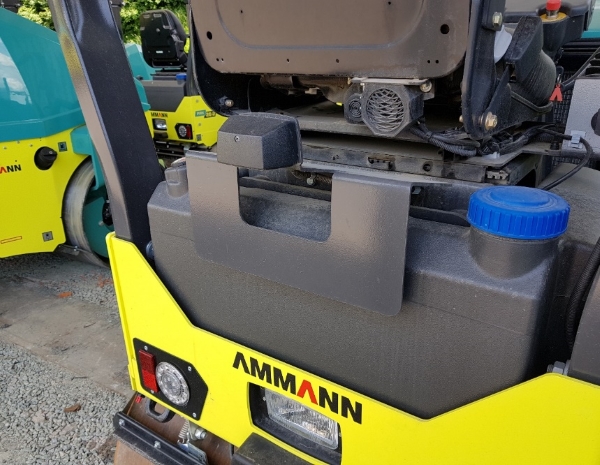

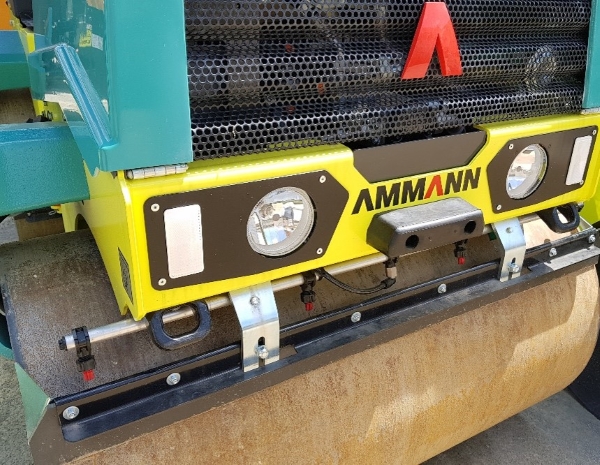

Sprinkling system

Exceptional water tank capacities on all lines extends working intervals between fillings. A multilevel filtration system lengthens sprinkler life.

  • ARX line 2.1-2: 190 liter (50.2 gal)
  • ARX line 2-2: 190 liter (50.2 gal)

Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

Articulation/oscillation joint

This maintenance-free joint provides wide turning angles and enables switches between in-line and off-set configurations. This is a great feature for rental fleets.

The central steering joint with integrated oscillation connects key components and ensures balanced machine weight  distribution and consistent ground contact.

Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

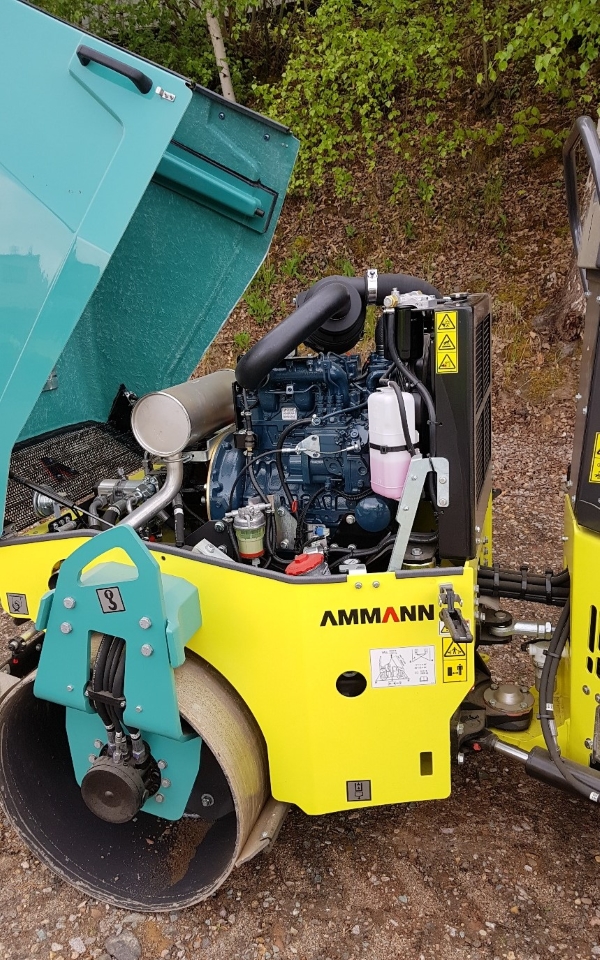

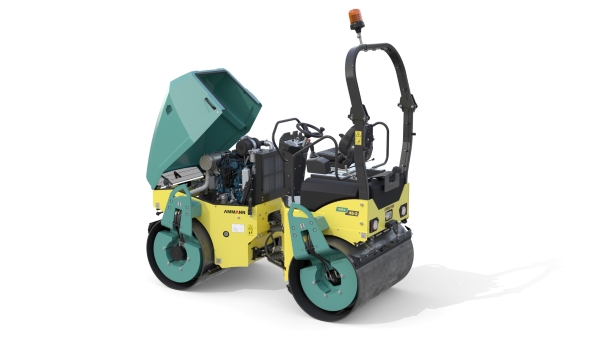

Serviceability

A wide-opening hood provides excellent access to the engine compartment and daily inspection points while also offering a quick overview of fluid levels. No tools are required to access daily service points, ensuring the maintenance is completed quickly – thereby reducing ownership costs.

  • Maintenance-free parts
  • Tool-free daily inspection

Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

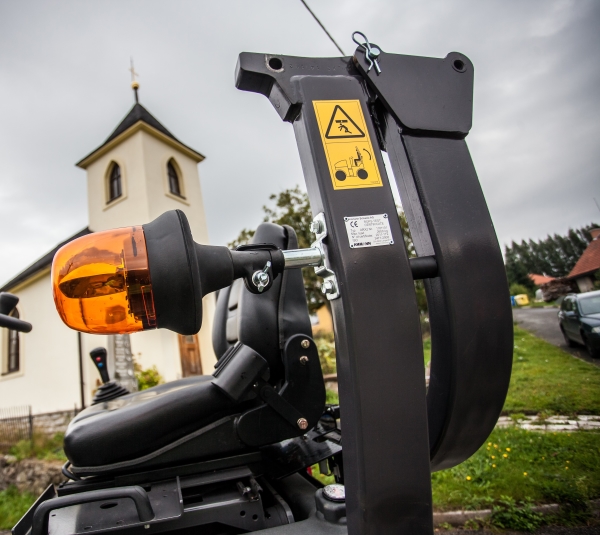

ROPS

A foldable rollover protection system reduces machine height and makes transport easier.



Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

Engine

A highly efficient engine meets the latest worldwide emissions standards – and provides plenty of power, too.

Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

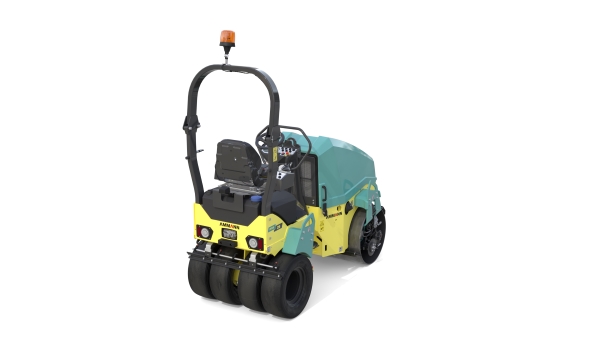

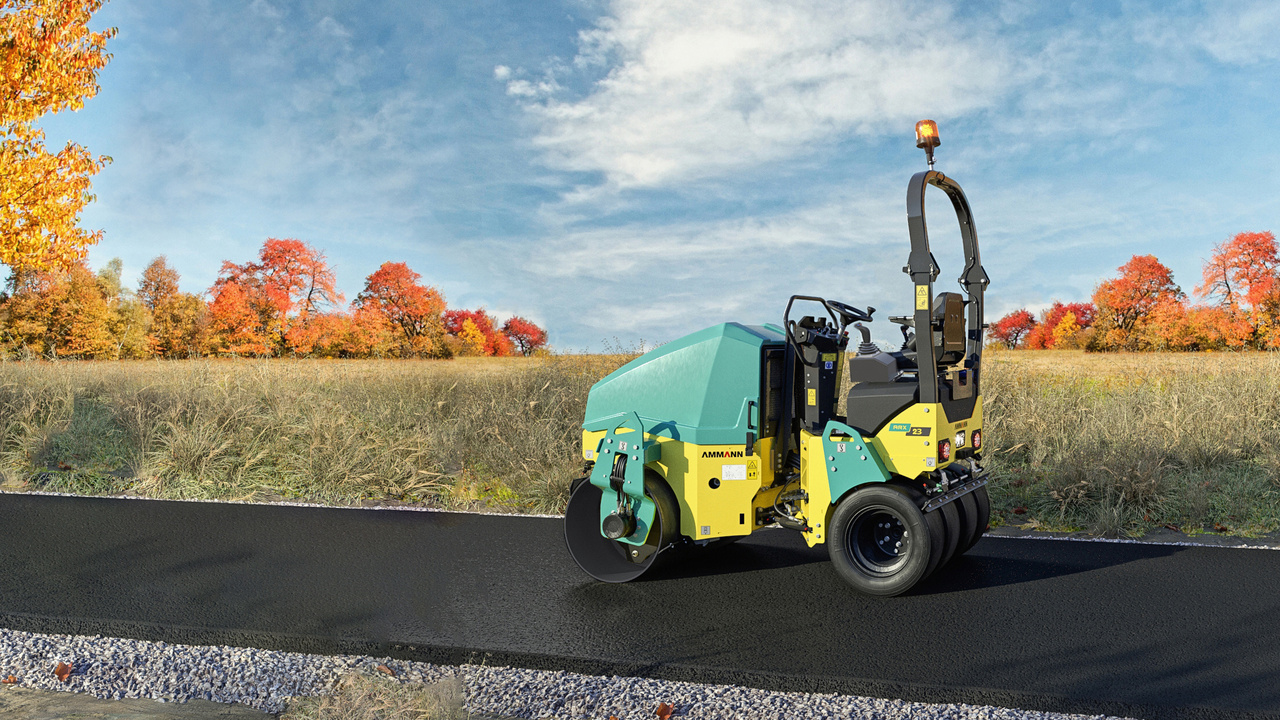

Combination version

Combination rollers are unique machines that utilise both a drum and pneumatic tyres, enabling vibratory compaction or a kneading effect. Two independent water sprinkling systems allow the use of different liquids.



Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

Electronic drive lever

Enables smooth starts and stops. The control is integrated in the system as an intelligent function. This technical solution prevents unnecessary damage to the freshly placed asphalt and also helps less experienced operators succeed.

Customers can choose from two operating modes:

  • Soft drive mode
  • Hard drive mode

Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

ACE Compaction

ACEforce
  • Covers the spectrum of compaction in soil and aggregates
  • Available information includes achieved compaction
  • Continuous compaction measurement system
  • System is integrated in multifunctional display
  • Can measure compaction at any point on-site
  • Absolute measurement system with evaluation of real material stiffness

Previous Next
ARX 2.1-2 / ARX 2-2 LIGHT TANDEM ROLLER SERIES

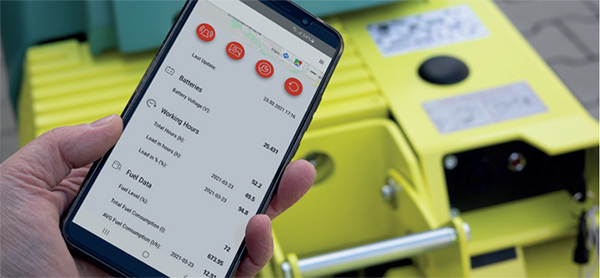

ServiceLink

Delivering the Data that Matters!

Ammann ServiceLink is a digital data management tool that provides customers with the information they want the most: machine location, battery status and operating hours. Data transfer is automatic thanks to new hardware, and access to the information is only a click away.

Manage your equipment – anytime, anywhere – with Ammann ServiceLink. This comprehensive fleet system provides key data for light compaction equipment, heavy compaction machines and asphalt pavers. You can choose which machines to track.

Highlights
  • Supplies machine location, operating hours, battery status
  • Provides one-click access to data
  • Reliably transmits data from machines, no matter where they are
  • Compatible with all machines produced by Ammann or other manufacturers
  • Streamlines fleet upgrades (retrofit option)
  • Easy to install
The hardware is easy to add as a retrofit

Simply attach the TCU and the battery to the machine. The TCU is activated when plugged into the battery. That’s it!




ARX 23.1-2
StV / T4f

  • Kubota
  • D 1703 - M-DI
  • 18.5 kW / 24.8 HP
  • 2260 kg / 4982 lb
  • 1000 mm / 39.4 in
  • 66 Hz / 66 Hz
  • 35 kN / 7868 lbf
  • Ammann ServiceLink

ARX 23.1-2C
StV / T4f

  • Kubota
  • D 1703 - M-DI
  • 18.5 kW / 24.8 HP
  • 2110 kg / 4652 lb
  • 1000 mm / 39.4 in
  • 66 Hz / 66 Hz
  • 35 kN / 7868 lbf
  • Ammann ServiceLink

ARX 23-2
StV / T4f

  • Kubota
  • D 1803 - CR
  • 25 kW / 33.5 HP
  • 2230 kg / 4916 lb
  • 1000 mm / 39.4 in
  • 66 Hz / 66 Hz
  • 36 kN / 8093 lbf
  • Ammann ServiceLink

ARX 23-2C
StV / T4f

  • Kubota
  • D 1803 - CR
  • 25 kW / 33.5 HP
  • 2085 kg / 4597 lb
  • 1000 mm / 39.4 in
  • 66 Hz / 66 Hz
  • 36 kN / 8093 lbf
  • Ammann ServiceLink

ARX 23-2
StIIIA / T4i

  • Kubota
  • D 1803 - M - DI
  • 25 kW / 33.5 HP
  • 2260 kg / 4982 lb
  • 1000 mm / 39.4 in
  • 66 Hz / 66 Hz
  • 36 kN / 8093 lbf
  • Ammann ServiceLink

ARX 23-2C
StIIIA / T4i

  • Kubota
  • D 1803 - M-DI
  • 24.8 kW / 33.3 HP
  • 2110 kg / 4652 lb
  • 1000 mm / 39.4 in
  • 66 Hz / 66 Hz
  • 36 kN / 8093 lbf
  • Ammann ServiceLink

ARX 26.1-2
StV / T4f

  • Kubota
  • D 1703 - M-DI
  • 18.5 kW / 24.8 HP
  • 2460 kg / 5423 lb
  • 1200 mm / 47.2 in
  • 66 Hz / 66 Hz
  • 42.8 kN / 9622 lbf
  • Ammann ServiceLink

ARX 26.1-2C
StV / T4f

  • Kubota
  • D 1703 - M-DI
  • 18.5 kW / 24.8 HP
  • 2110 kg / 4652 lb
  • 1200 mm / 47.2 in
  • 66 Hz / 66 Hz
  • 41 kN / 9217 lbf
  • Ammann ServiceLink

ARX 26-2
StV / T4f

  • Kubota
  • D 1803 - CR
  • 25 kW / 33.5 HP
  • 2515 kg / 5540 lb
  • 1200 mm / 47.2 in
  • 66 Hz / 66 Hz
  • 42 kN / 9442 lbf
  • Ammann ServiceLink

ARX 26-2C
StV / T4f

  • Kubota
  • D 1803 - CR
  • 25 kW / 33.5 HP
  • 2350 kg / 5181 lb
  • 1200 mm / 47.2 in
  • 66 Hz / 66 Hz
  • 42 kN / 9442 lbf
  • Ammann ServiceLink

ARX 26-2
StIIIA / T4i

  • Kubota
  • D 1803 - M-DI
  • 24.8 kW / 33.3 HP
  • 2460 kg / 5423 lb
  • 1200 mm / 47.2 in
  • 66 Hz / 66 Hz
  • 42 kN / 9442 lbf
  • Ammann ServiceLink

ARX 26-2C
StIIIA / T4i

  • Kubota
  • D 1803 - M-DI
  • 24.8 kW / 33.3 HP
  • 2300 kg / 5071 lb
  • 1200 mm / 47.2 in
  • 66 Hz / 66 Hz
  • 42 kN / 9442 lbf
  • Ammann ServiceLink
